Contour lines off

Recommended Posts

Hello all,

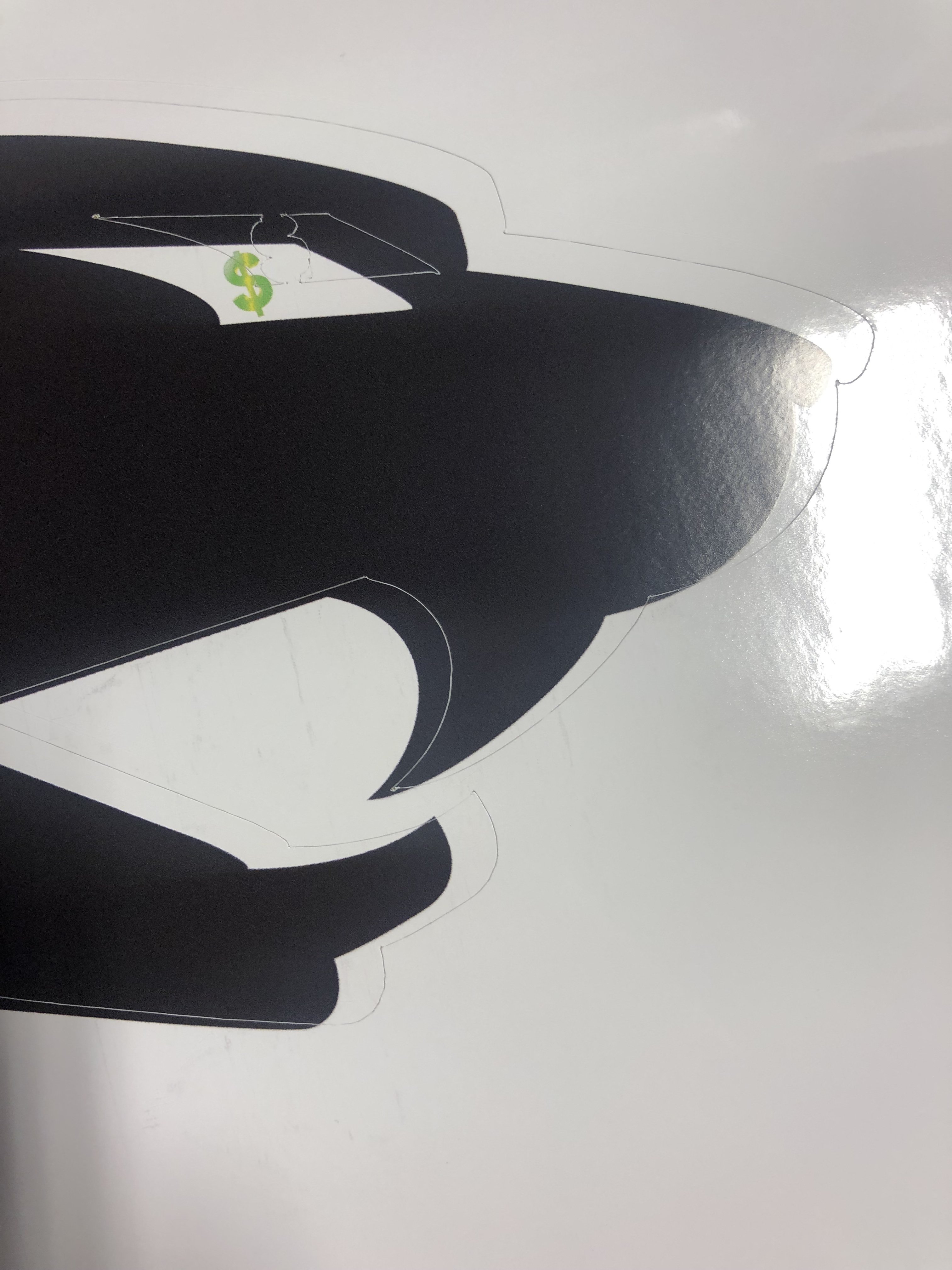

im stumped and don’t know where to begin.   This problem just randomly started occurring it seems like.   I created both items in illustrator, converted to a PSD and imported into flexi v.12.   Add contour cut in flexi and print, then I put into graphtec 8600 and right from the first cut it’s off as you can see.   I’ve tried to contour 4 different files, all with same outcome   In flexi I typed 2 characters, added contour and cut them on 8600 and ts perfectly fine.

Thanks in advance










Share this post


Link to post
Share on other sites
22 minutes ago, MZ SKEETER said:

You do not mention printing the registration marks with the design and having the cutter read the registration marks. Did you do that?

Sorry yes all jobs had the proper registrations marks for the graphtec and were all read by the cutter.

Share this post


Link to post
Share on other sites

Were you ever able to contour cut correctly the way you were doing it from .ai?

Have you tried a different Graphtec software to use like Cutting Master, and just use the plugin with it?



Share this post


Link to post
Share on other sites

I would try a few things: - change the registration marks from type 2 to type 1 - or vice verus.  and export the PDF or .eps file straight from illustrator.

that may help

  • Thanks 1

Share this post


Link to post
Share on other sites
